Garage Apartment Plan, 053G-0001
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

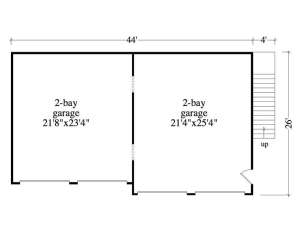

Car enthusiasts and large or growing families will discover this 4-car garage apartment plan is the perfect solution to parking and living needs. The main level holds two, double bay garages offering 1065 square feet of parking, and they are connected by two pass-thrus. The double bay garage on the right is slightly deeper than the one on the left offering a little more space for oversized vehicles. If you have a growing family fleet, this design will give everyone a place to park. Or perhaps you’ll prefer to use one section of the garage for a workshop or storage space. The choice is yours. Exterior stairs lead the way to the upper level apartment. The living quarters are quite accommodating providing a compact kitchen overlooking the comfortable living room, a large pantry, sunny dining areas and generously sized bedroom with nearby bath. Notice the wall of windows lining the living room delivering wonderful views, the walk-in closet in the bedroom, and the fireplace accented with organizational built-ins. Use this space for your college student, the in-laws, or guest quarters. Better yet, it is an ideal rental property allowing you to earn income to pay off your much needed garage. The private apartment entry ensures tenants will not have access to anything you store in the garage. Stylish and functional, this carriage house plan is sure to complement any home.
| Heated Square Feet | |
| Second Floor | 948 |
| Total | 948 |
| Unheated Square Feet | |
| Garage | 1065 |
| Bedrooms | 1 |
| Full Bathrooms | 1 |
| Width | 48 ft. 0 in. |
| Depth | 26 ft. 0 in. |
| Approximate Height | 26 ft. 0 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Second Floor | 8 ft. 0 in. |
| Roof Pitch | 12/12 Main |
| Roof Pitch | 9/12 Other |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
| Special Features |
|
Car enthusiasts and large or growing families will discover this 4-car garage apartment plan is the perfect solution to parking and living needs. The main level holds two, double bay garages offering 1065 square feet of parking, and they are connected by two pass-thrus. The double bay garage on the right is slightly deeper than the one on the left offering a little more space for oversized vehicles. If you have a growing family fleet, this design will give everyone a place to park. Or perhaps you’ll prefer to use one section of the garage for a workshop or storage space. The choice is yours. Exterior stairs lead the way to the upper level apartment. The living quarters are quite accommodating providing a compact kitchen overlooking the comfortable living room, a large pantry, sunny dining areas and generously sized bedroom with nearby bath. Notice the wall of windows lining the living room delivering wonderful views, the walk-in closet in the bedroom, and the fireplace accented with organizational built-ins. Use this space for your college student, the in-laws, or guest quarters. Better yet, it is an ideal rental property allowing you to earn income to pay off your much needed garage. The private apartment entry ensures tenants will not have access to anything you store in the garage. Stylish and functional, this carriage house plan is sure to complement any home.
