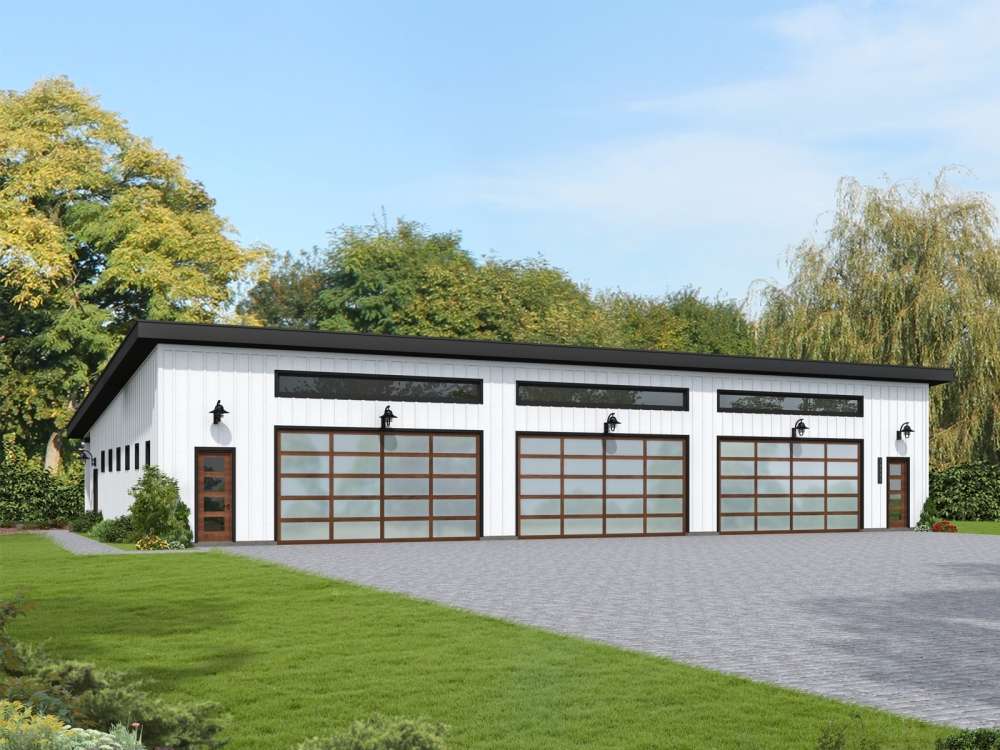

RV Garage Apartment Plan, 062G-0514
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
This modern garage apartment plan is brimming with features
Extra-deep bays are suitable for parking standard vehicles tandem style or easily accommodate larger vehicles such as campers, RVs, and boats on trailers
Auto enthusiasts will have more than enough sheltered parking for their collections
Four rear overhead doors create drive through bays that will accommodate most vehicles eliminating the hassle of backing a boat or camper in/out of the garage – just pull straight thru
Extra-tall ceilings accommodate an auto lift (or more than one) increasing auto storage
Complete with a one-bedroom, two-bath apartment, this garage floor plan makes the perfect home base for RV-ers
The finished living space includes an open floor plan, laundry room, kitchen island, private master bath and huge walk-in closet
Ceiling slopes up from 12’ at the rear garage master bedroom wall to 17’ at the front wall
Ceiling slopes up from 11’-3” at the rear wall of the master bath and walk-in closet to 17’ at the front wall
| Heated Square Feet | |
| First Floor | 1759 |
| Total | 1759 |
| Unheated Square Feet | |
| Garage | 2777 |
| Porch(es) | 515 |
| Bedrooms | 1 |
| Full Bathrooms | 2 |
| Width | 88 ft. 8 in. |
| Depth | 57 ft. 0 in. |
| Approximate Height | 18 ft. 9 in. |
| Roof Pitch | 1/12 Main |
| Roof Framing |
|
| Garage Door Size(s) | 20x10 (3) |
| Garage Door Size(s) | 10x10 (4) |
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
| Exterior Features |
|
This modern garage apartment plan is brimming with features
Extra-deep bays are suitable for parking standard vehicles tandem style or easily accommodate larger vehicles such as campers, RVs, and boats on trailers
Auto enthusiasts will have more than enough sheltered parking for their collections
Four rear overhead doors create drive through bays that will accommodate most vehicles eliminating the hassle of backing a boat or camper in/out of the garage – just pull straight thru
Extra-tall ceilings accommodate an auto lift (or more than one) increasing auto storage
Complete with a one-bedroom, two-bath apartment, this garage floor plan makes the perfect home base for RV-ers
The finished living space includes an open floor plan, laundry room, kitchen island, private master bath and huge walk-in closet
Ceiling slopes up from 12’ at the rear garage master bedroom wall to 17’ at the front wall
Ceiling slopes up from 11’-3” at the rear wall of the master bath and walk-in closet to 17’ at the front wall
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $40 | n/a | $55 | n/a |
| Express 1 - 2 business days | $55 | n/a | n/a | n/a |
